EDUP® 320W Starlink PoE Injector for Starlink Performance Gen 2

Product description

Starlink PoE Injector Kit Series

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

5.0 out of 5 stars 1

3.5 out of 5 stars 3

—

3.3 out of 5 stars 7

—

3.9 out of 5 stars 173

Price

$179.99$179.99

—

—

$169.99$169.99

—

$99.99$99.99

ASIN

B0GRL1YP5Z

B0FLXSWQVN

B0FLXWVVW9

B0F9SW1QGM

B0GSR5BSRD

B0D2ZNVJ9V

Color

Gray

Gray

Gray

Gray

Gray

Gray

Compatible with

Starlink High Performance

Starlink Mini

Starlink Gen 3

Starlink Mini Dishy Kit

Starlink Mini

Starlink High Performance

Material

ABS

ABS & Aluminium

ABS

ABS & Aluminium

ABS & Aluminium

Aluminium Alloy

Power

350W

150W

350W

350W

350W

320W

Easy Installation

✔

✔

✔

✔

✔

✔

DC Step Up Converter Provided

✔

✔

✔

✔

✔

✔

EDUP Starlink PoE Injector 320W

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. 320W Starlink High Performance PoE Injector Kit Merchant Video

EDUP Starlink GigE PoE Injector 320W

Provides up to 320W of power to ensure stable power supply for the Starlink High Performance Internet Kit satellite, guaranteeing the reliability of the network connection ；Supports 10/100/1000M network speed for rapid data transmission, and also supports four pairs of Gigabit Ethernet.

Compact Design

EDUP Starlink GigE PoE Injector 320W with compact design is lightweight and portable enough to take them everywhere. The perfect companion to the Starlink High Performance Internet Kit.

Advanced Connectivity and Safety

Ensure ultra-fast data transmission to your router or PC. Equipped with a powerful 12V to 48V step-up converter and reliable shielded connections, each component secures a stable and efficient network setup.

Easy Installation Guide

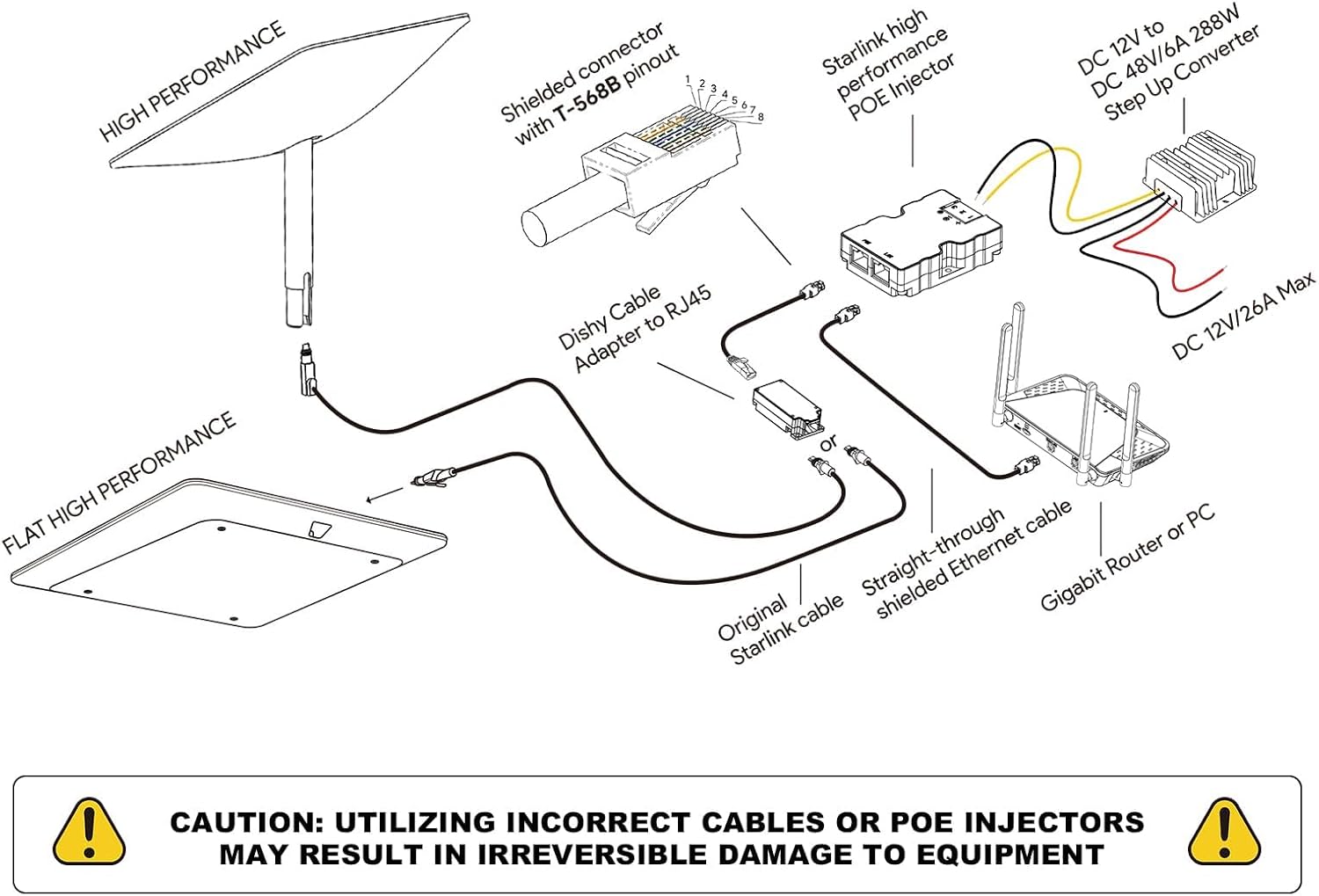

Featuring high-performance/flat high-performance Starlink dish antennas, dedicated cable adapters, and straight-through Ethernet cables, the EDUP Starlink PoE Injector makes the setup process both simple and efficient.

Lightning Protection up to 8KV

Built-in lightning protection functions of the 320W Starlink PoE Injector protect against voltage fluctuations and lightning strikes, thus improving the stability and reliability of the devices. Particularly useful in outdoor areas or areas prone to lightning strikes.

320W Starlink PoE Injector

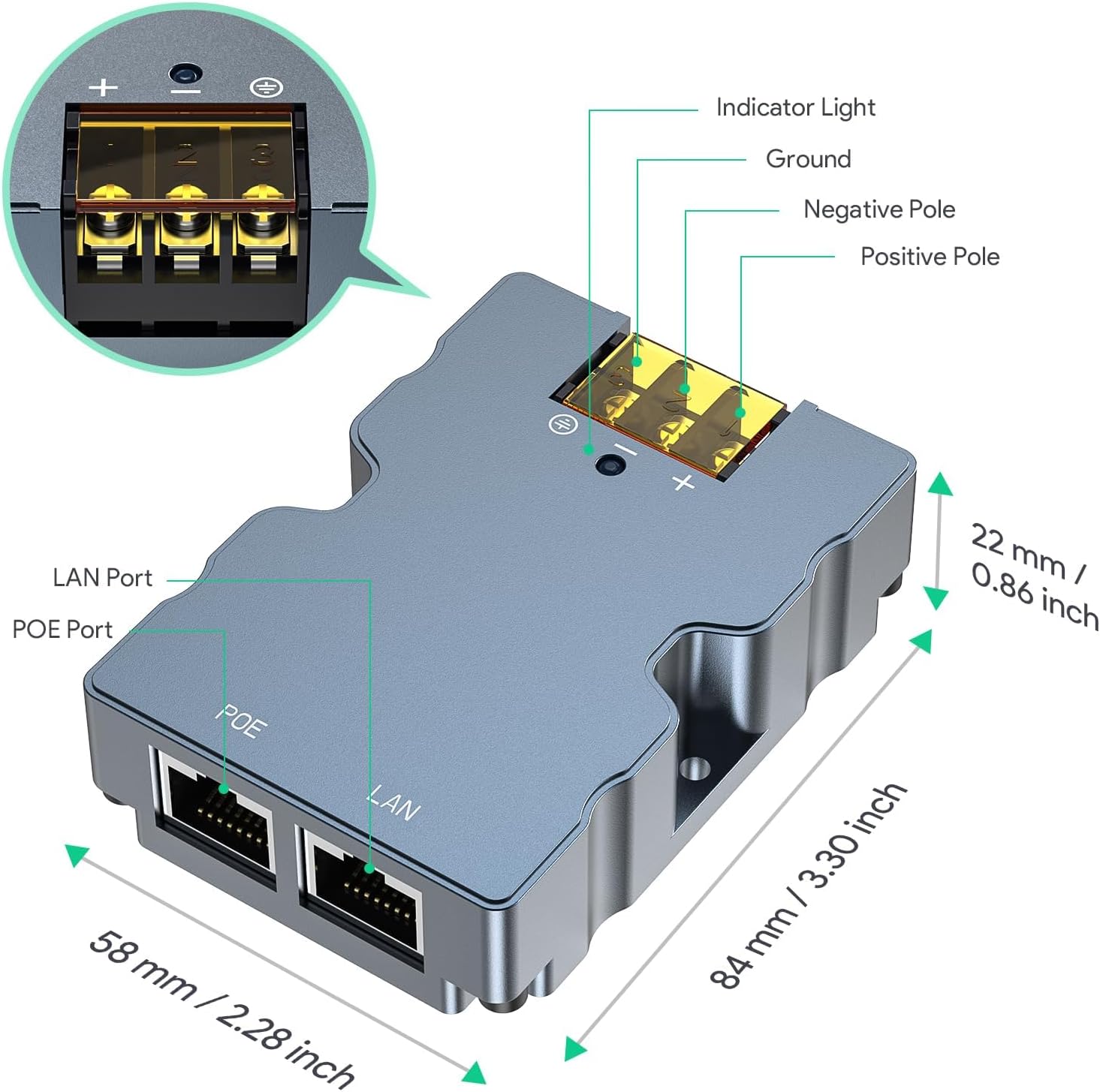

Inteface 1*POE，1*LAN，1*Power Pin Configuration +V: 1, 2, 3, 6; -V: 4, 5, 7, 8 Network Speed 10/100/1000Mbps(Gigabit Ethernet) Input DC 48~57V Output current 6A Max Protection Surge: ±8KV (Differential), Class A ESD: ±8KV (Contact), ±15KV (Air), Class A Operating Temperature -20℃ to +55℃ Operating Humidity 10% – 90% (Non-condensing) Storage Temperature -40℃ to +70℃ Output Power 320W(Max)

User Notes:

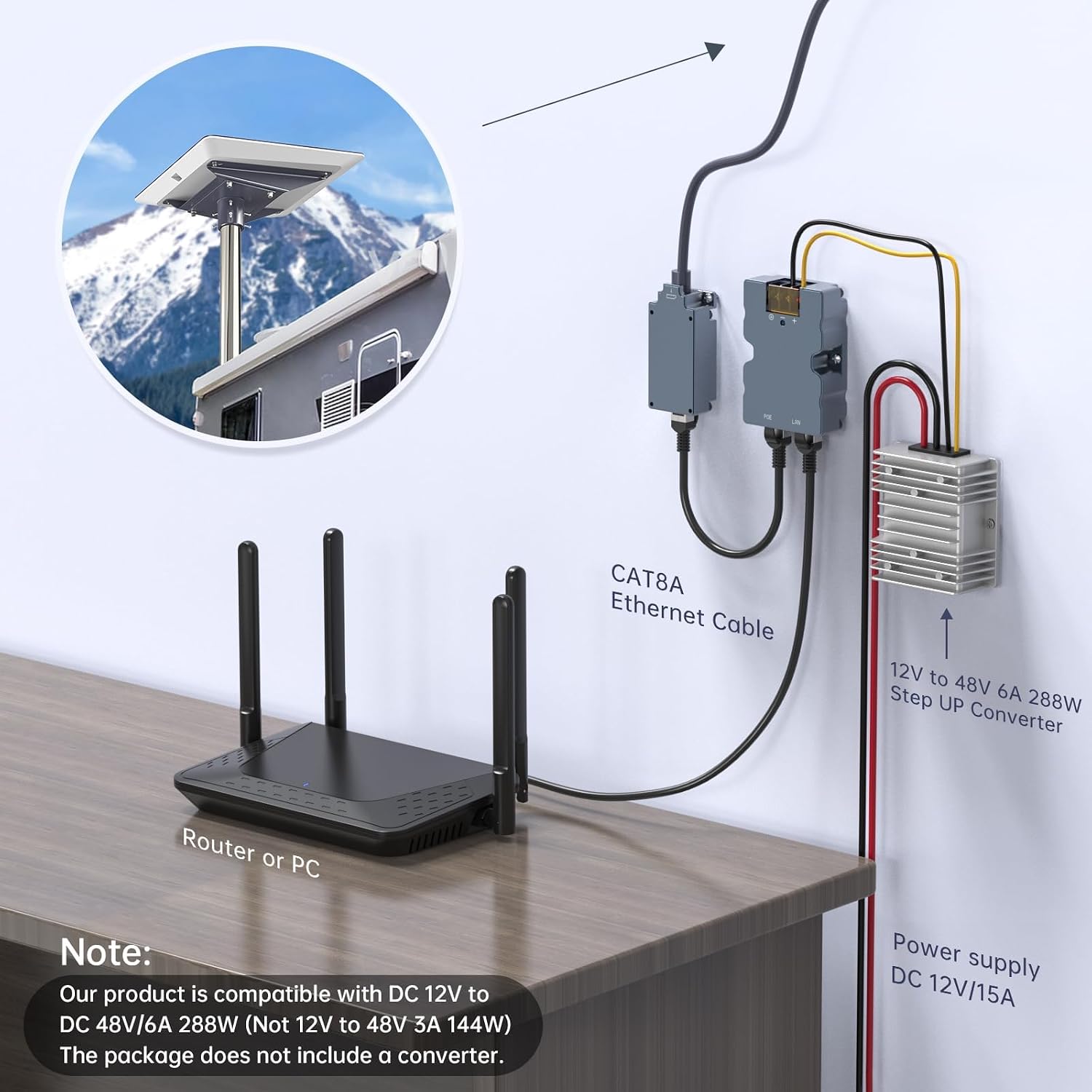

In order to power the high-performance Starlink Dishy, you will need a power system consisting of a 12V/26A power supply and a 12V/26A to 48V/6A inverter. The maximum power rating is 320W.You need a Gigabit Etheret router to connect to Starlink Dishy to ensure optimal performance in terms of speed and stablity.The Starlink satellite receiver is equipped with protective functions to prevent voltage or current fluctuations. Ensure a stable power supply system to maintain normal operation and optimal performance.

Full Protection: Built-in comprehensive safeguards ensure uninterrupted usage, eliminating the need for fuse replacements.
High Power Performance: Delivers 4-pair high power PoE injection with a pinout configuration of +V: 1,2,3,6 -V: 4,5,7,8, compatible with 10/100/1000 Mb/s networks.
Advanced Protection Features: Equipped with surge, undervoltage, overvoltage, and overcurrent protection, including total current and per pin current measurement, for enhanced safety.
Reliable Functionality: Even in cases of wrong wiring or short circuits, the injector remains fully functional after conditions are corrected, ensuring a smooth usage experience.
Robust Design: Operating temperature range of -20 to +55 °C and storage temperature range of -40 to +70 °C, with a humidity tolerance of 10 – 90% (non-condensing), guaranteeing durability in various environments.

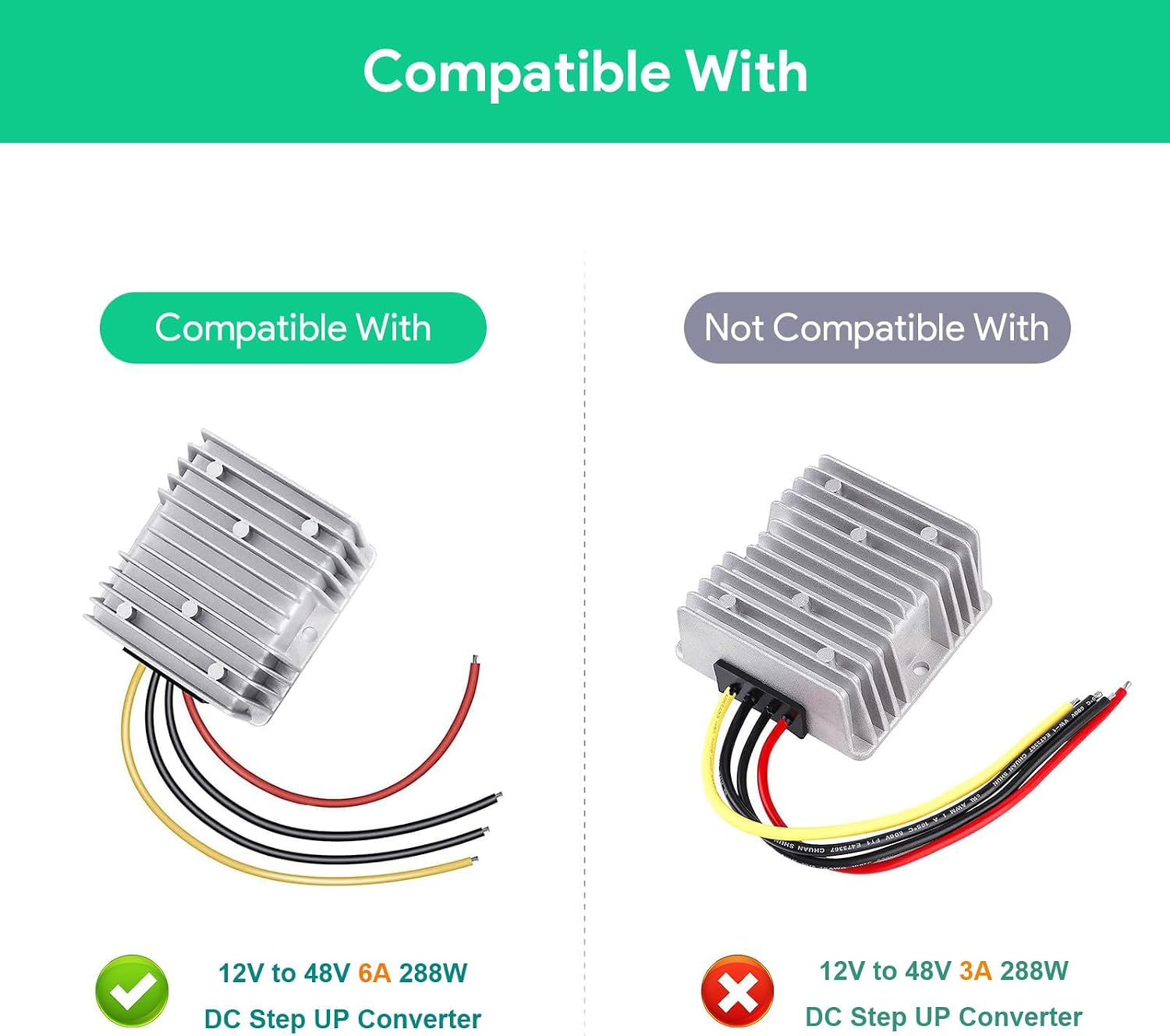

【 Compatible Devices 】：Compatible with Starlink High Performance/ Starlink Flat High Performance ; Only Work with 12V to 48V 6A 288W DC Step UP Converter for this 320W Starlink PoE Injector.

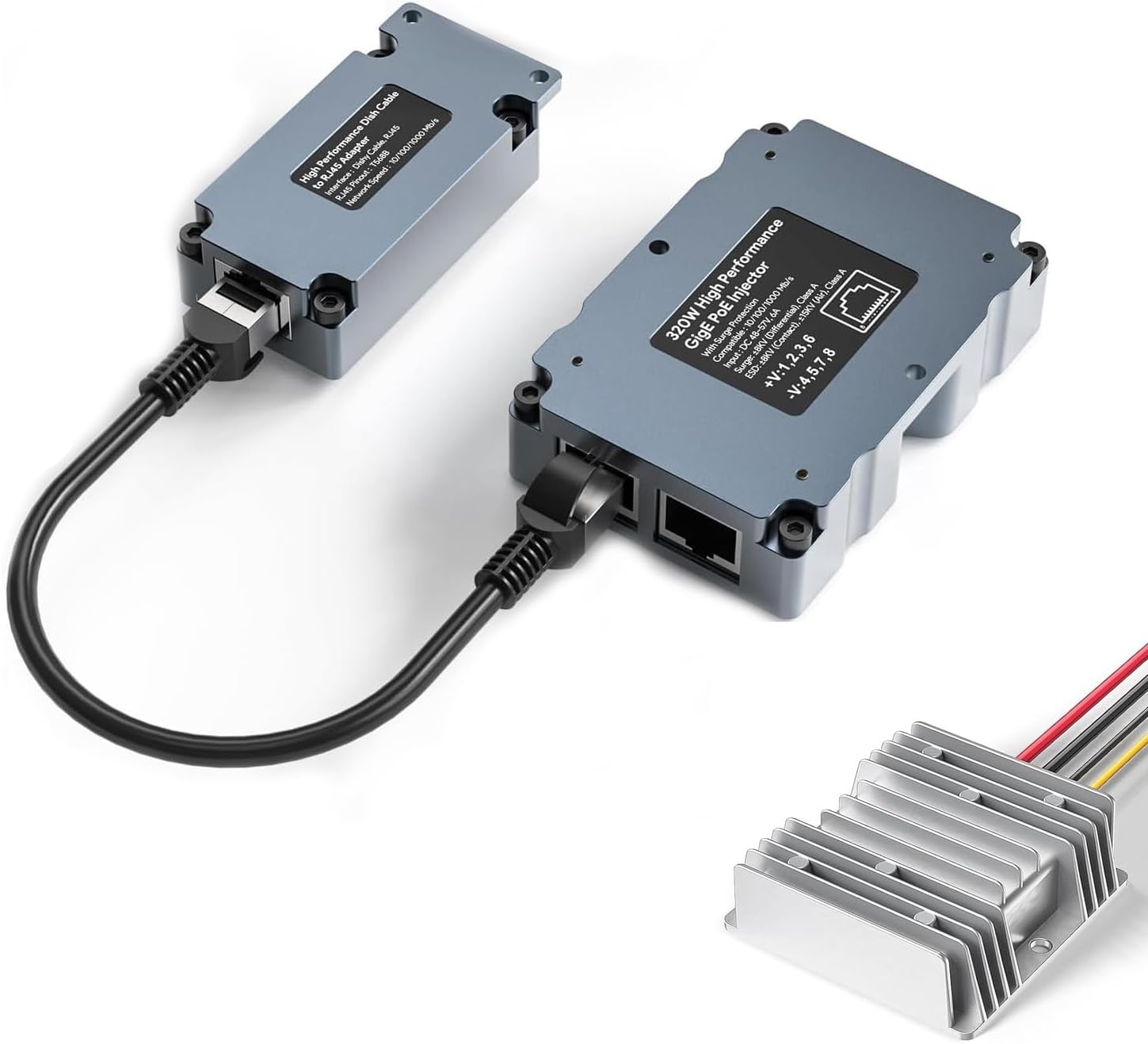

【Included Items of Kits 】：1x 320W GigE PoE Injector ; 1 x Dish Cable to RJ45 Adapter ; 1x 12V to 48V 6A 288W DC Step UP Converter ; 1 x Ethernet Cable
