SMSL AO300 PRO DAC Amplifier | CS43131 USB/Coax/Opt/RCA Input MQA DAC | 165W

Product description

1 XMOS USB Interface

2 CS43131 Chip

3 MA5332MS Power Amp

4 Volume Chip

1 Input & Output

2 Usage Scenario

3 Class D Amp

4 Bluet…5.3

5 HDMI Audio Return

1 eARC and ARC

2 Remote Control

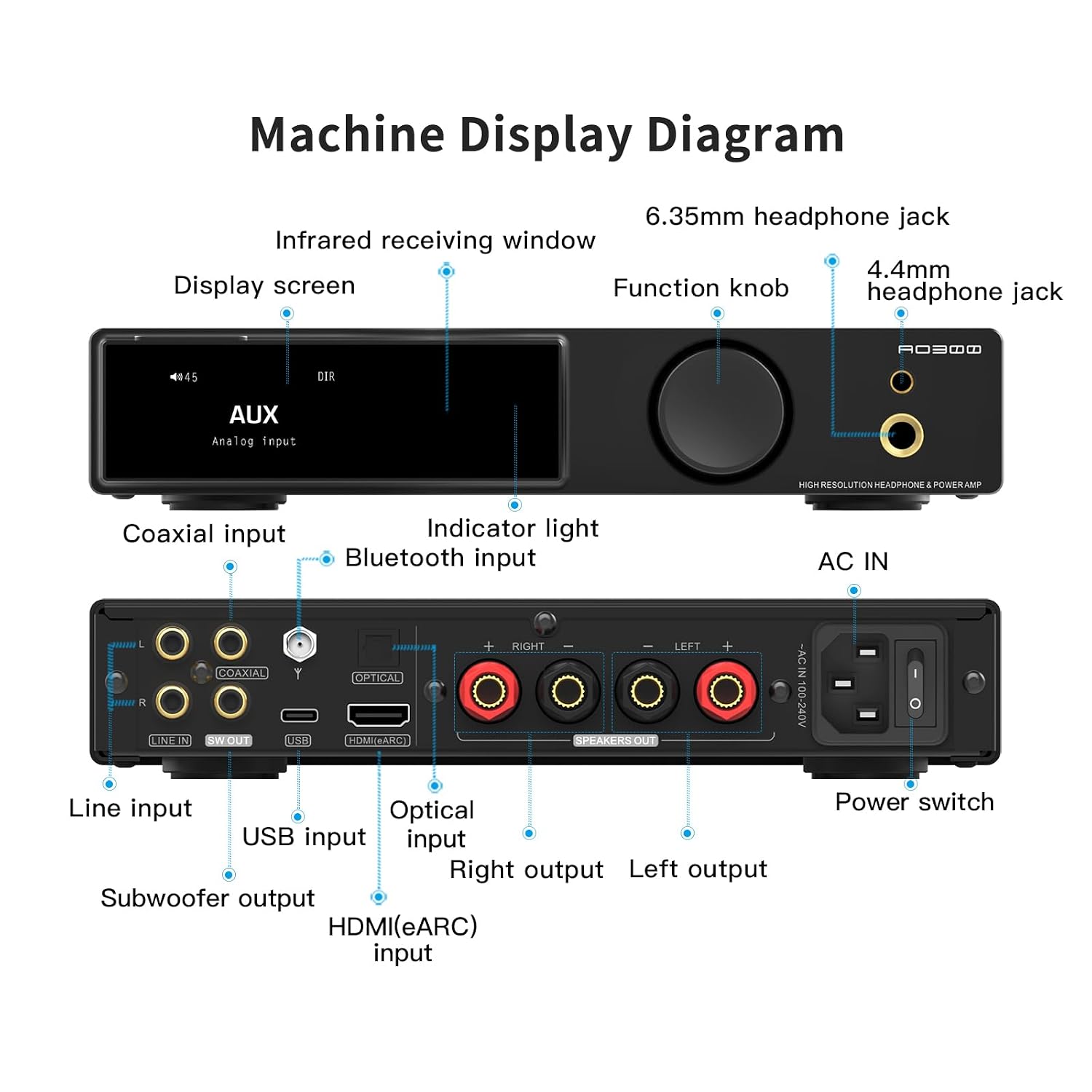

3 Machine Display

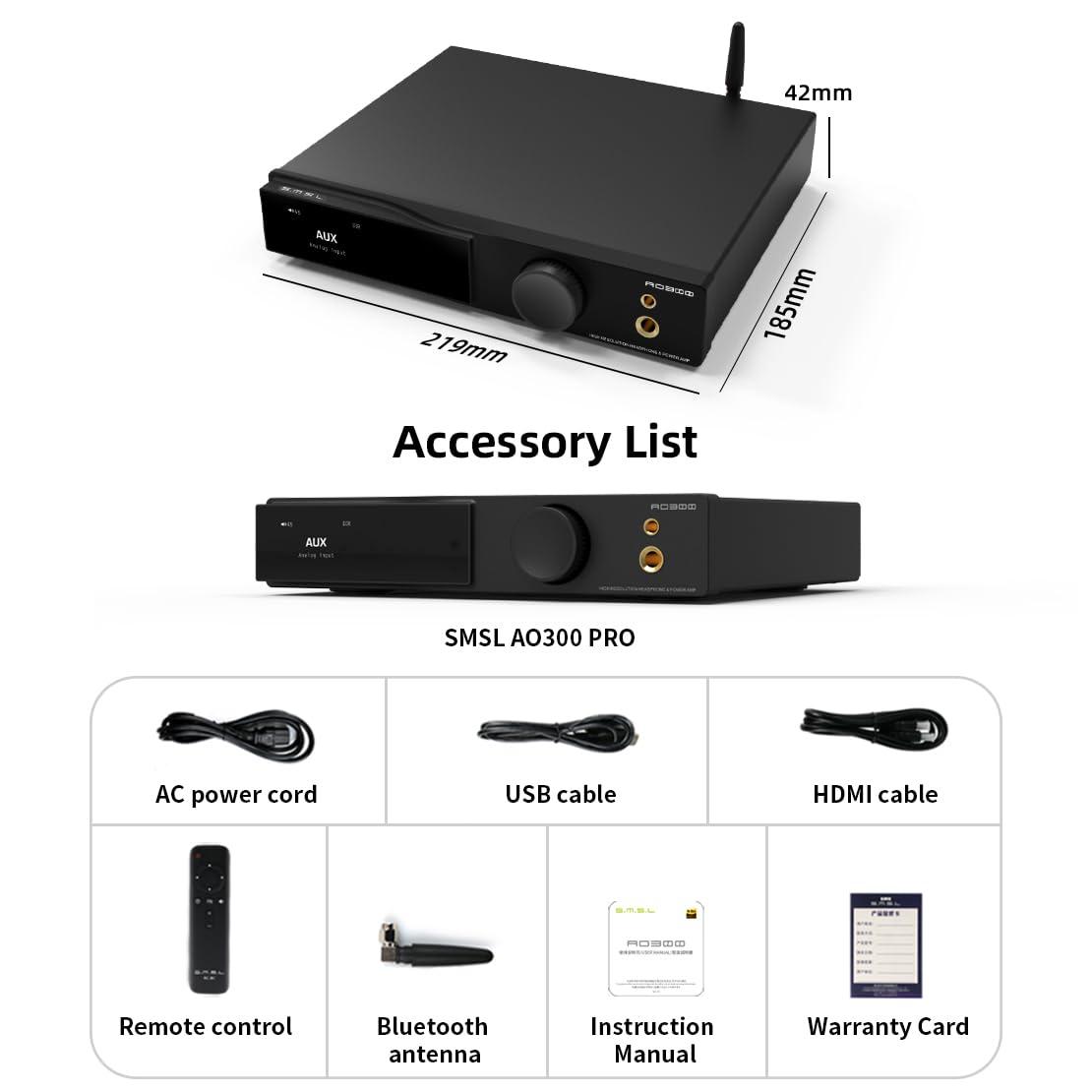

Accessories: AO300 PRO, SMSL Card, Remote Control, USB Cable, Power Cable, User Manual, HDMI Cable

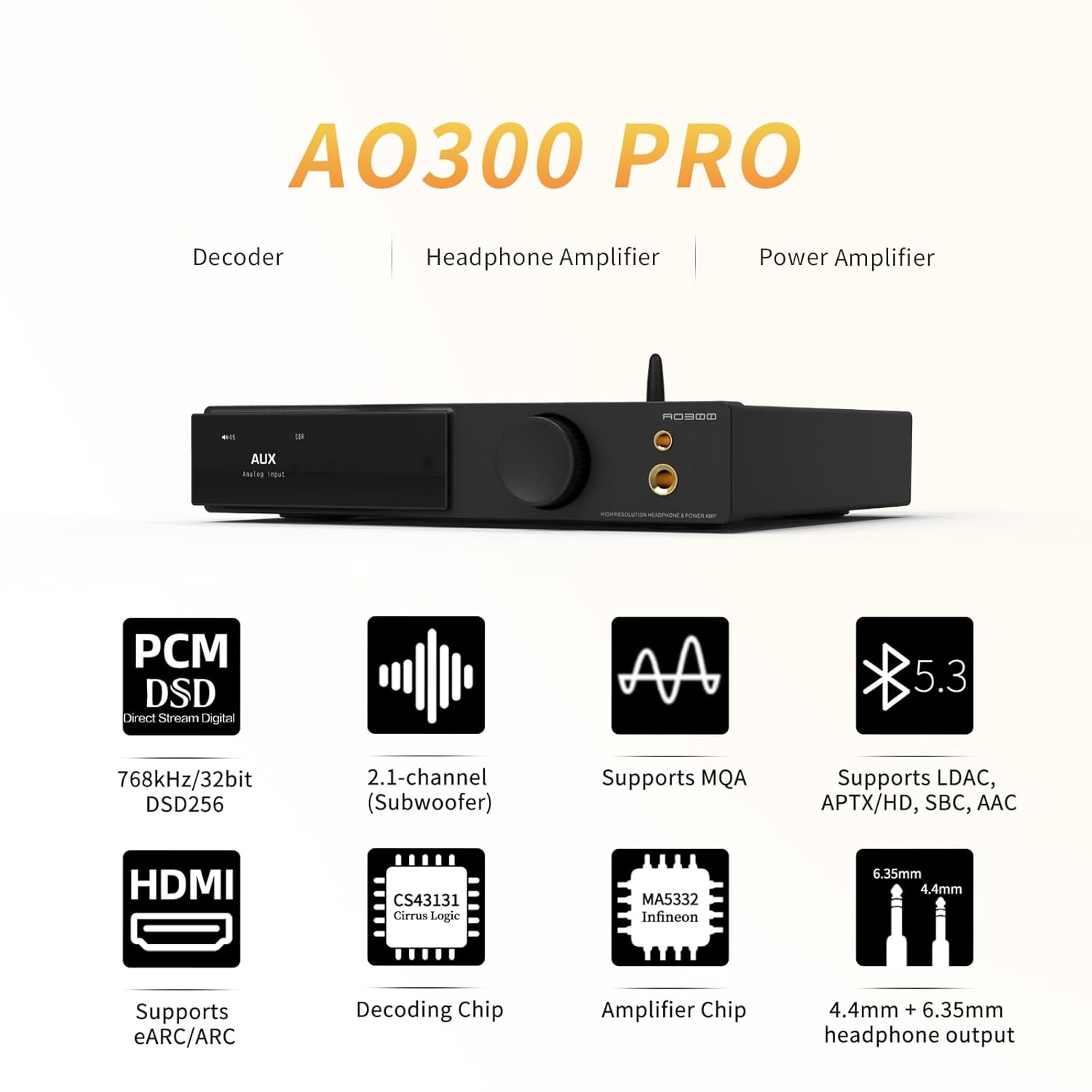

Hi-Res Audio Support: The SMSL AO300PRO features the CS43131 DAC chip and XMOS XU-316 interface, supporting PCM 32bit/768kHz, DSD256, and full USB MQA decoding formats. Combined with the NJW1194 electronic volume control chip, it achieves ultra-low distortion of 0.003%, delivering precise musical details.

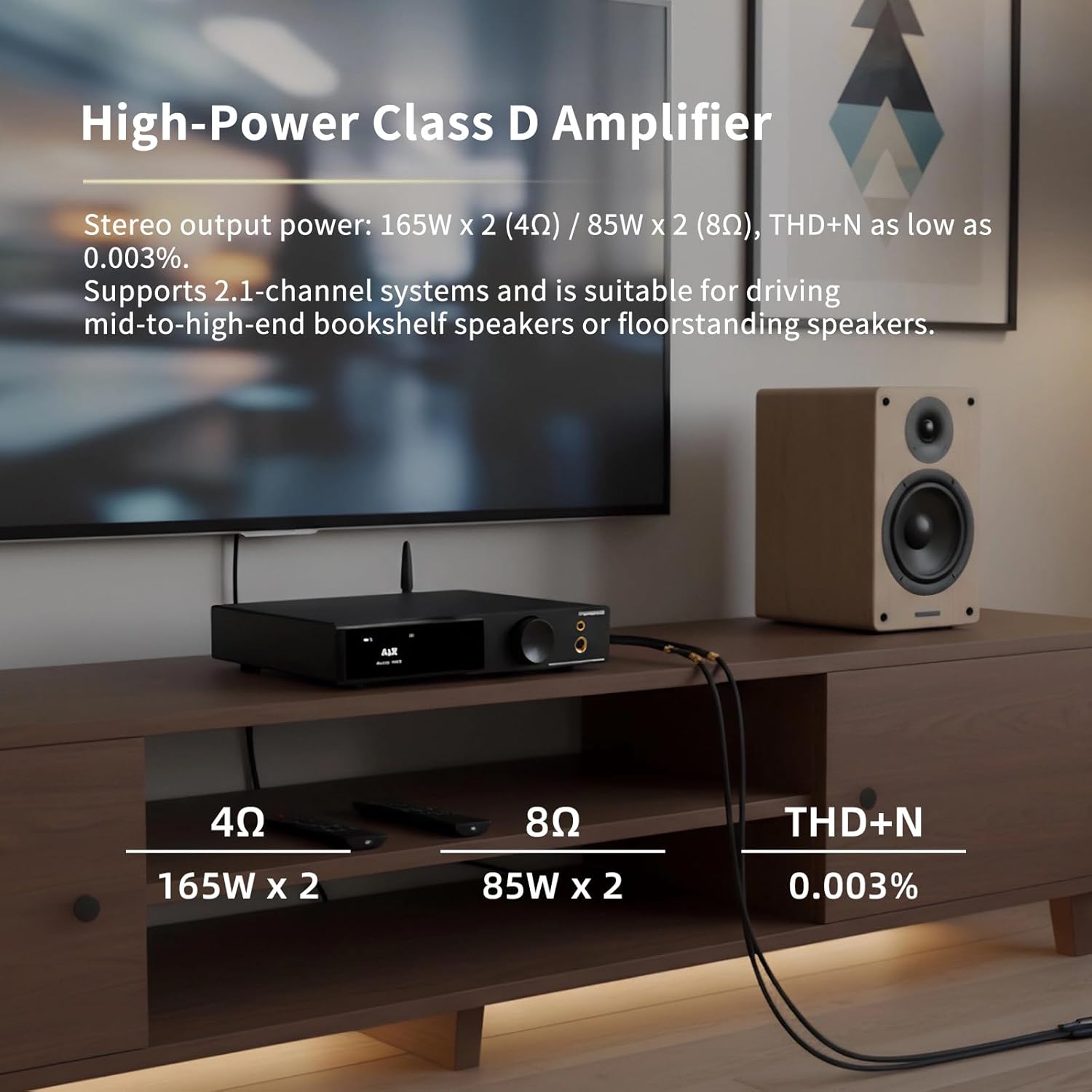

Equipped with the MA5332MS power amplifier chip, it outputs 165W×2 at 4Ω and 85W×2 at 8Ω. It effortlessly drives both bookshelf speakers and high-impedance audio systems. And also includes a 4.4mm balanced output and a 6.35mm headphone jack, supporting 2.1-channel subwoofer expansion to meet the needs of desktop HIFI and home theater setups.
Versatile Connectivity: It features optical, coaxial, USB, and RCA wired inputs, allowing seamless connection to TVs, computers, CD players, and more. It effortlessly transitions between office entertainment and home music listening.
Personalized EQ and Filter Options: The AO300 PRO amplifier offers 8 EQ audio modes and 5 filters, allowing you to adjust the audio output based on your listening preferences and music genres for the best listening experience.

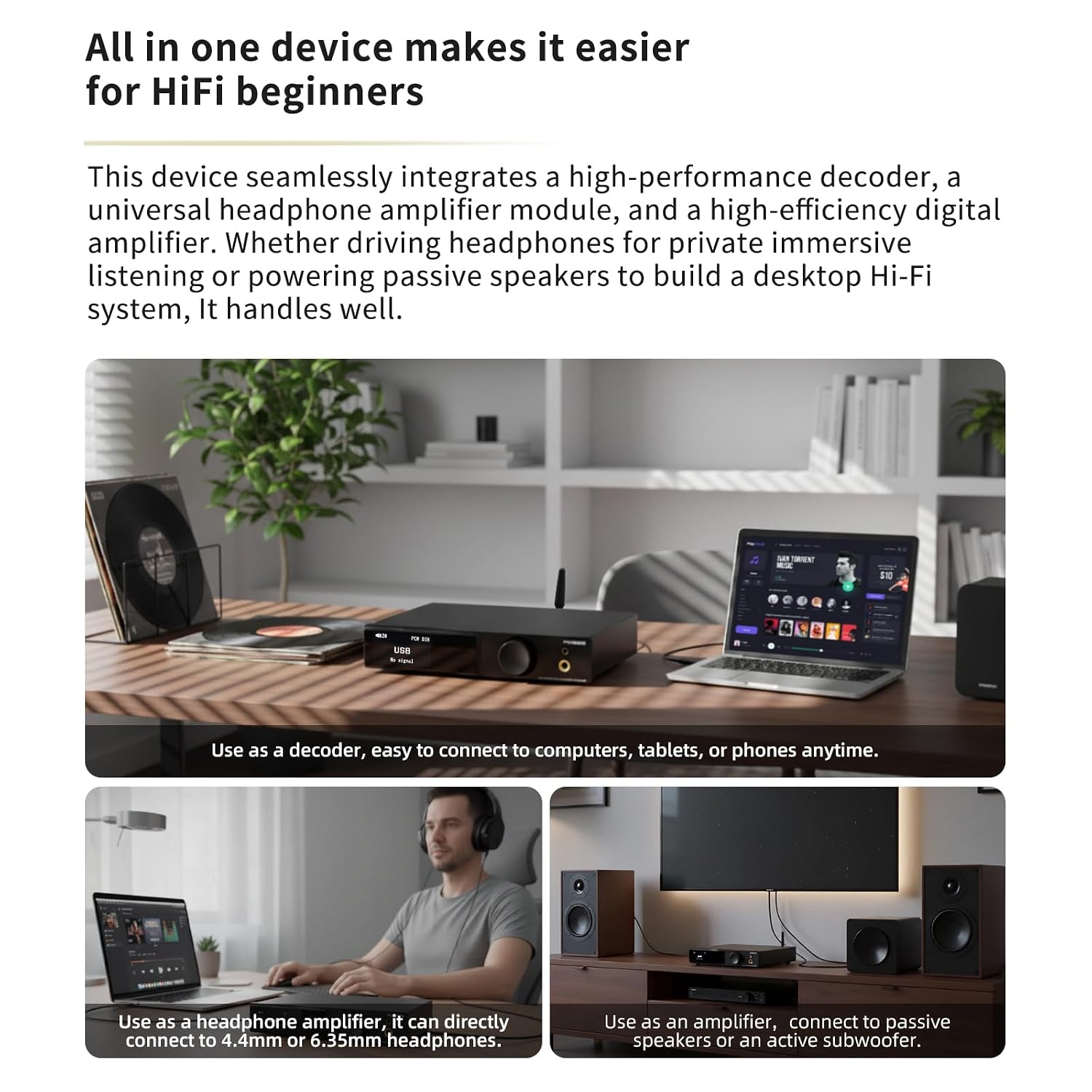

All-in-One Hi-Fi Solution: This all-in-one AO300 PRO integrates a decoder, power amplifier, and headphone amplifier, eliminating the hassle of multiple device connections. It comes with a full-function remote control for easy volume adjustment and input switching. It is the ideal entry-level equipment for music enthusiasts and audiophiles.
Accessories: AO300 PRO, SMSL Card, Remote Control, USB Cable, Power Cable, User Manual, HDMI Cable

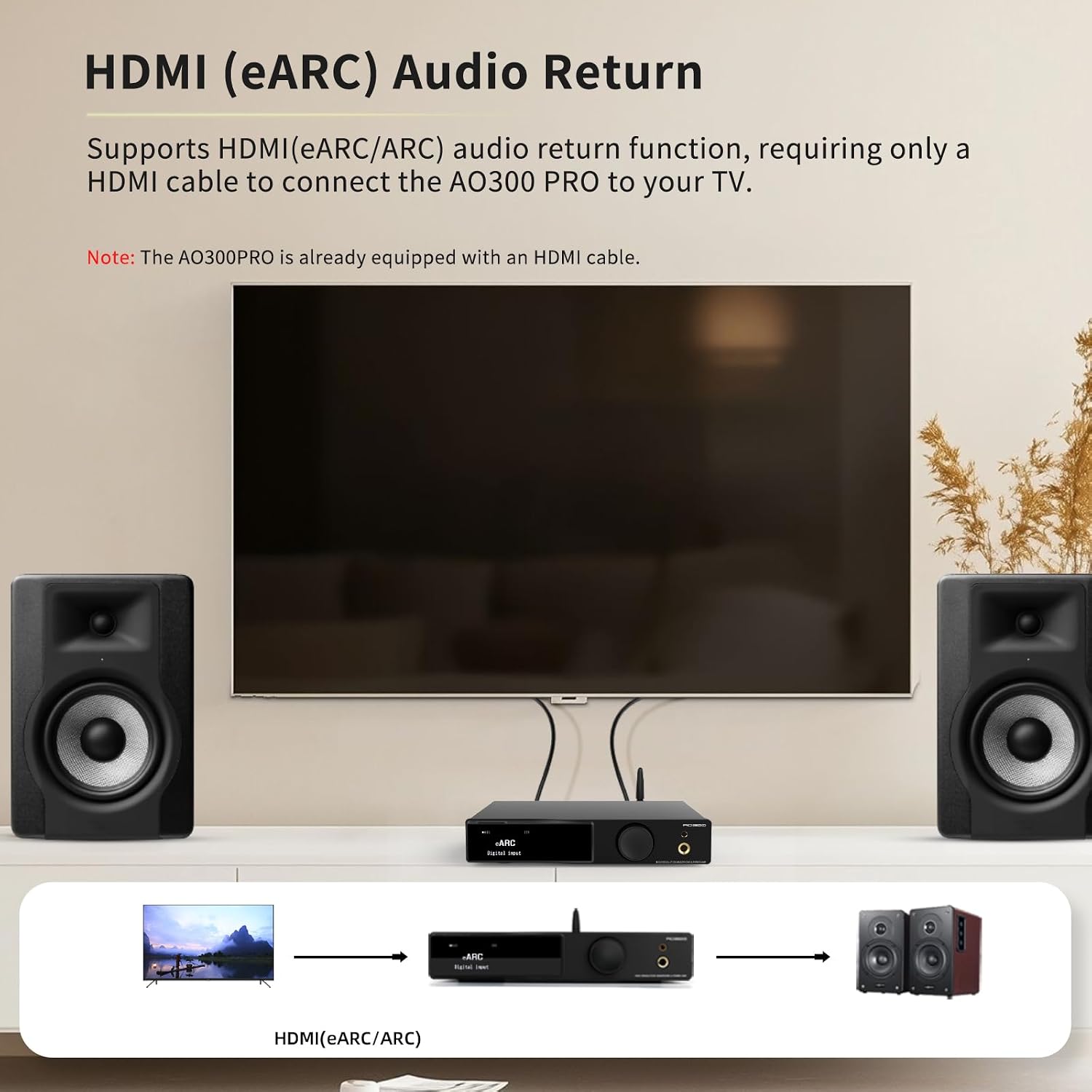

HDMI (eARC) Audio Return: Supports HDMI eARC audio return. Enabling CEC function in the settings allows simultaneous power on/off and volume control synchronization between the TV and amplifier. It supports a maximum sampling rate of 192 kHz. *TV connection functionality requires a CEC-compatible TV.
