TOPPING D50 III 2*ES9039Q2M DAC, USB/BT5.1/Optical/Coaxial to RCA/TRS Audio DAC

Product description

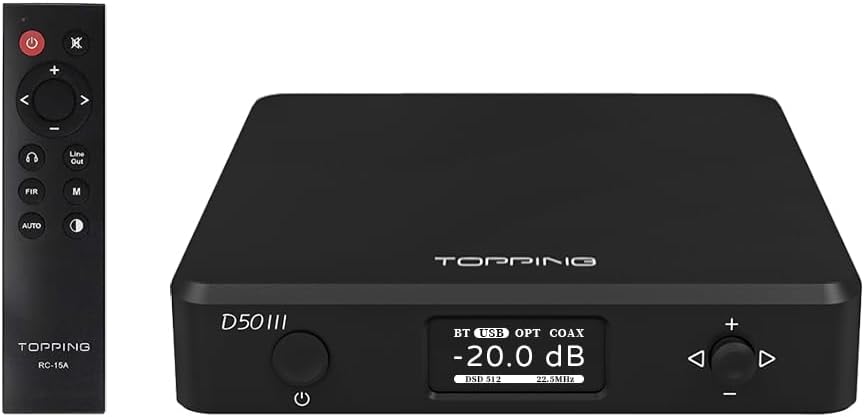

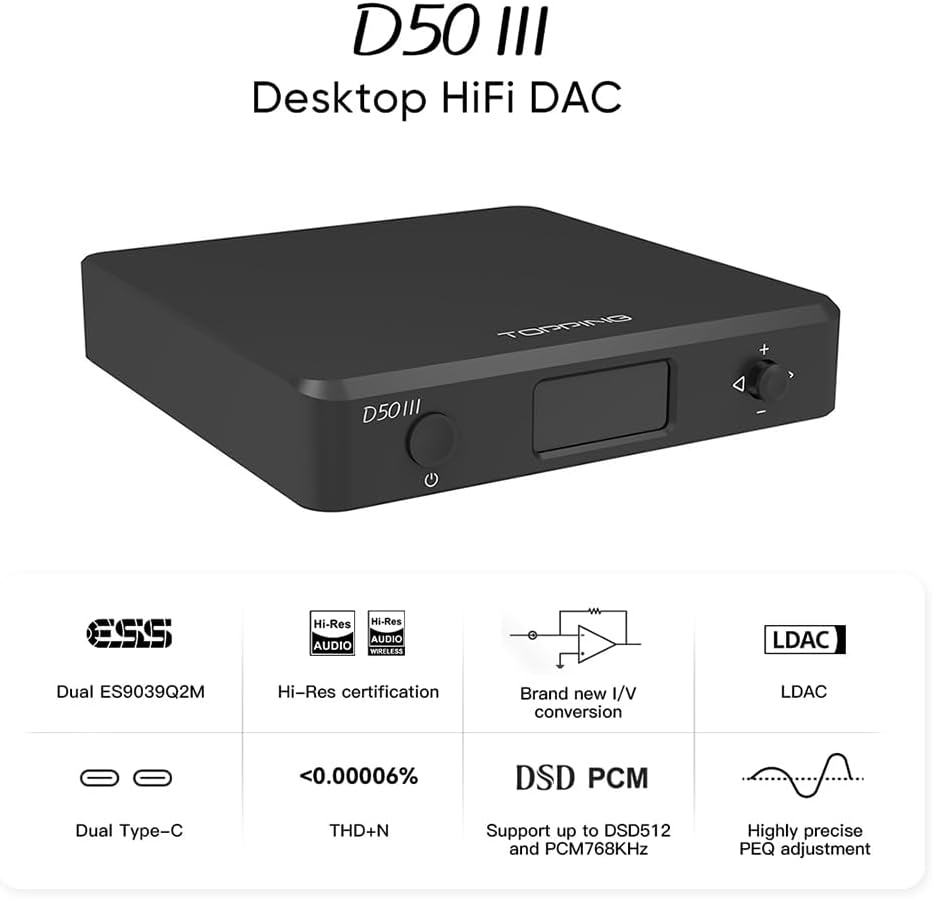

TOPPING D50 III

2*ES9039Q2M DAC, XMOS XU316 USB DAC, Home Audio DAC

TOPPING D50 III

The D50 III now features two ES9039Q2M DAC chips and an XMOS XU-316 USB interface, enabling it to support high-resolution streams up to PCM 32bit 768kHz and DSD512. TOPPING chose to offer the possibility of operating it as a DAC/preamplifier with volume control, coupled with active speakers or a power amplifier. The DAC D50 III’s connectivity interface features numerous digital inputs: SPDIF Coaxial, Toslin Optical and USB-C. Outputs include a balanced 6.35mm TRS jack and an RCA output.

USB-C DAC

TOPPING D50 III’s USB-C interface has two ports. A transmission port and a power port. It is recommended to use the additional power port when the D50 III is connected to a laptop or phone.

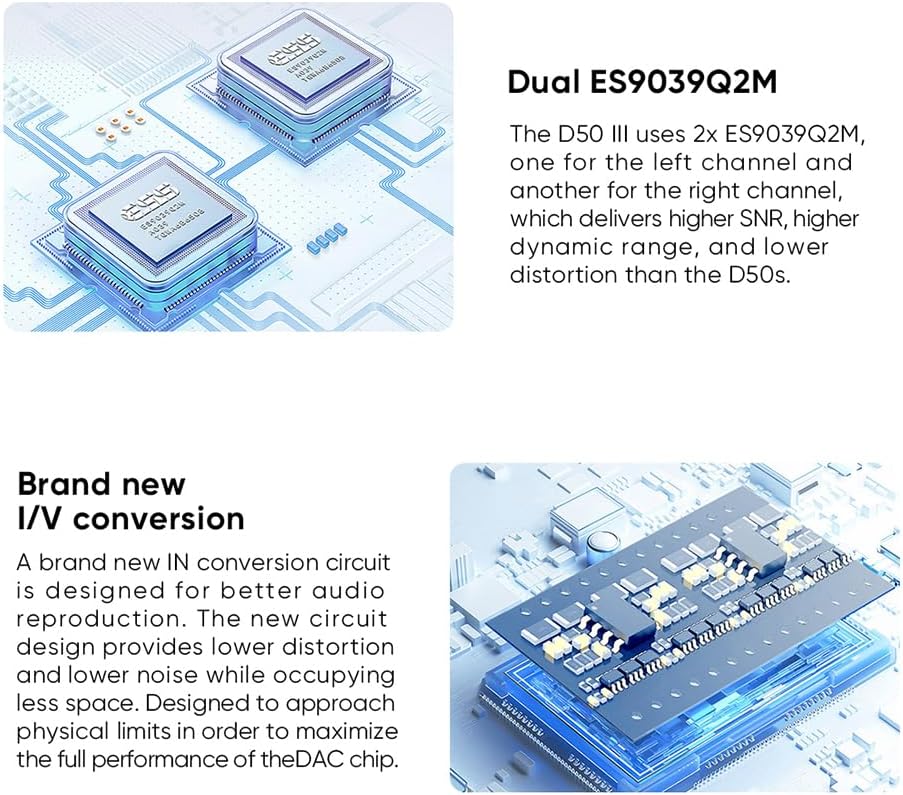

2 ES9039Q2M Chips

The D50 III features one ES9039Q2M DAC chip per channel for balanced signal processing.

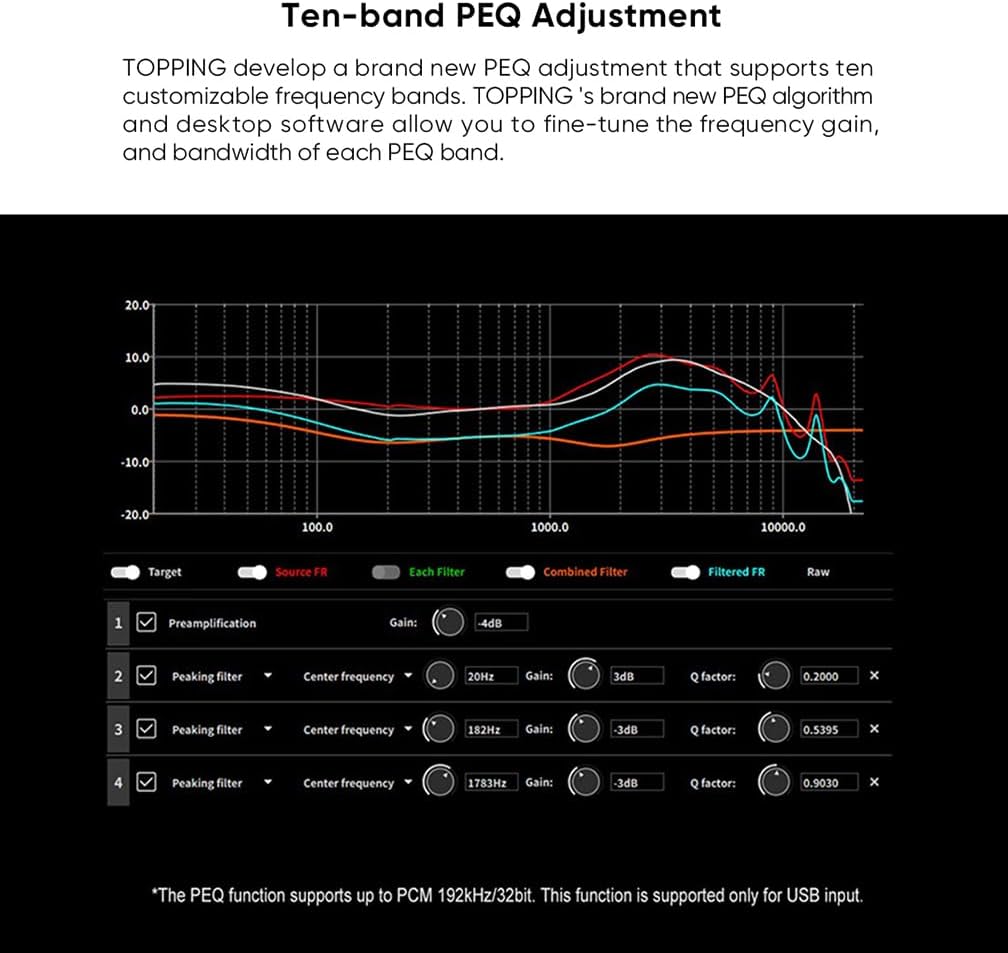

10-Band Equalization

A 10-band equalizer offering the possibility of adjusting numerous settings.

I/V Conversion

The new circuit design provides lower distortion and lower noise while occupying less space.

1 2 ES9039Q2M Chips 2 10-Band Equalization 3 I/V Conversion

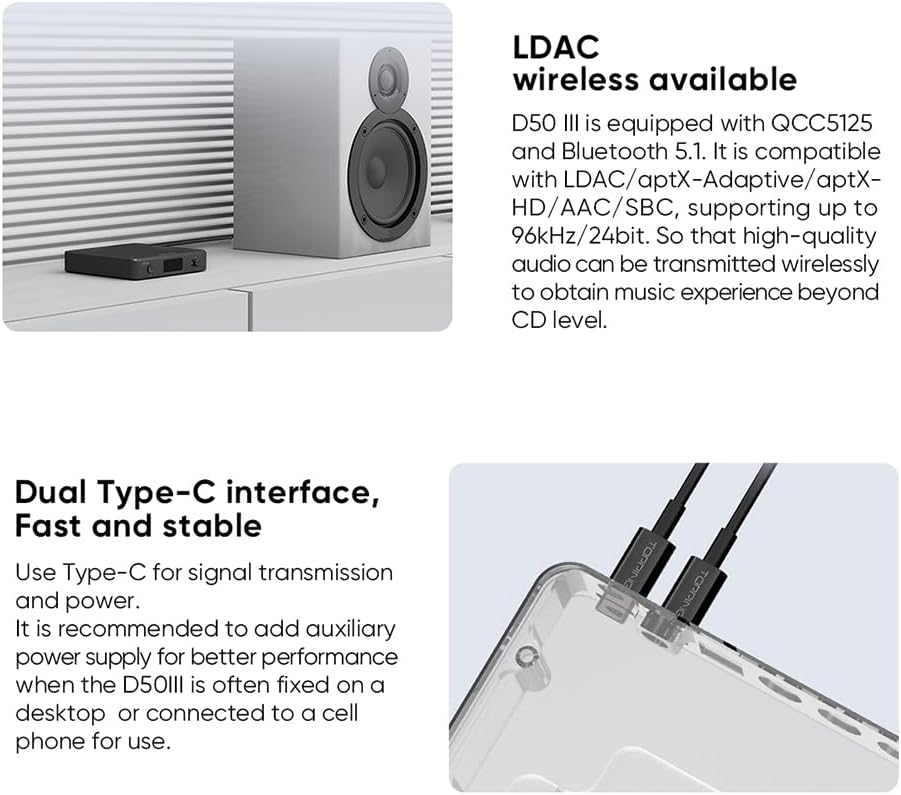

Bluetooth 5.1

A QCC5125 Bluetooth chip enables the D50 III to support the high-resolution codecs SBC, AAC, aptX, aptX Adaptative, aptX HD and LDAC. As a result, you can enjoy high-quality wireless transmission.

1 Front Panel

2 Side Panel

3 Back Panel

4 Upper Panel

Can’t be turned on.

· Connect DC5V power supply to the POWER port.

· Try with another DC5V power adapter.

· Try with another power cable.

One channel with noise/no output.

· Check to see if the problem is with the source, downstream equipment and cables. You can try swapping the left and right channel connections and try with another source.

Channel imbalance.

· Check to see if the problem is with the source, downstream equipment and cables. You can try swapping the left and right channel connections and try with another source.

PN ERR / PNH ERR / PNL ERR

· Negative and positive voltage abnormal

· Connect DC5V power supply to the POWER port.

· Try with another DC5V power adapter.

· Disconnect other devices and reboot.

『TOPPING D50 III DAC』TOPPING D50 III, boasting dual ES9039Q2M chips for clarity and depth, supporting formats up to DSD 512 and PCM 768kHz, perfect for audiophiles seeking hi-res sound.
『Audiophile-Grade Engineering』The D50 III features a novel I/V conversion circuit for reduced distortion and noise, encapsulated in a CNC unibody aluminum chassis.
『Wireless Hi-Fi Experience』Enjoy LDAC support and other high-definition Bluetooth codecs for wireless audio without compromising quality, alongside dual Type-C interfaces.

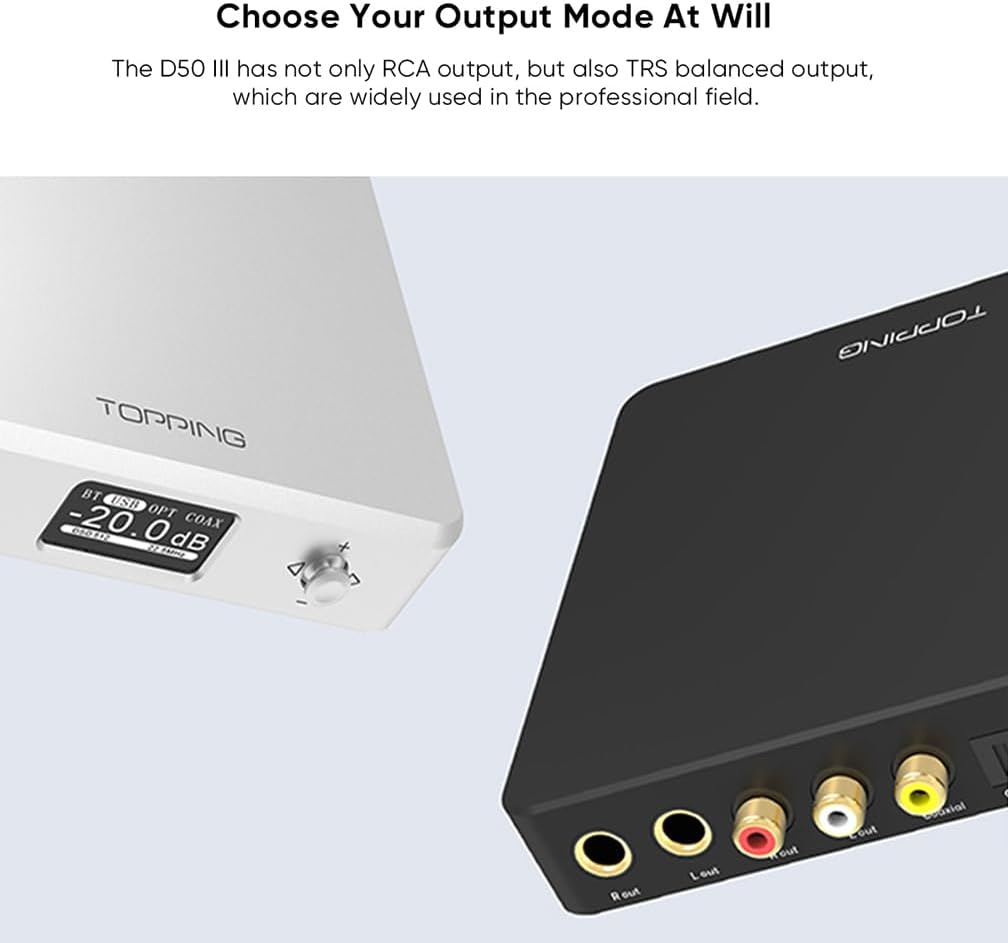

『Professional Connectivity』Equipped with both RCA and TRS balanced outputs, the D50 III caters to various audio setups, doubling as a preamp for direct volume control and offering ten-band PEQ adjustment for personalized sound profiles.
『Complete Audio Solution』Pair the D50 III with the A50 III amplifier for an integrated audio experience, featuring a 12V trigger output for device control, ensuring compatibility with desktop speakers, power amplifiers, and more.
